DVR
VideoSec 4ch
4-kanalni stand-alone pentapleks network DVR; H.264/G.711 kompresija; 4 video ulaza; 1 BNC kompozitni video izlaza; VGA izlaz; 2 audio ulaza/1 izlaz; USB 2.0 x2 - za lokalni backup i miš; RS485; 4 alarmna ulaza i relejni izlaz; snimanje sa do 100FPS u CIF ili 44FPS u D1; rezolucija prikaza 720×576 ili do 1280x1024 (VGA); real time prikaz; dual stream; sa IC daljinskim upravlja?em; mesto za do 1 SATA HDD do 2TB; network port i software za daljinski nadzor i konfigurisanje; CMS software; web pristup; software za Win Mobile, Symbian, IPhone i Android mobilne; dimenzije 1U - 325mm×245mm×45mm(W×D×H); masa 2.0kg; napajanje 110-240VAc preko priloženog adaptera 12VDc 5A;
AV Tech 4ch
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Input
(Composite video signal 1 Vp-p 75Ω BNC) 4 channels
Video Output (BNC) Main Monitor Output: for stable display
Audio Input / Output 4 audio inputs, 1 audio output (Mono)
Maximum Recording Rate Frame 704×480 pixels with 30 IPS <NTSC> / 704×576 pixels with 25 IPS <PAL>
Field 704x240 pixels with 60 IPS <NTSC> / 704×288 pixels with 50 IPS <PAL>
CIF 352×240 pixels with 120 IPS <NTSC> / 352×288 pixels with 100 IPS <PAL>
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
Hard Disk Storage Accommodates 1 SATA HDD (capacity up to 2TB)
Quick Search Time / Motion / Alarm search mode
SATA Interface Built-in
VGA Interface Built-in
Recording Mode Manual / Timer / Motion / Alarm / Remote
Multiplex Operation Live display / record / playback / backup / network operations
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Pre-alarm Recording YES
Backup Device USB 2.0 flash drive / Network
Web Transmitting Compression Format H.264
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Licensed software “Video Viewer” / Internet Explorer, Mozilla Firefox or
Google Chrome web browser / QuickTime player
Web Interface (5 users access simultaneously)
*Operating System: Windows 7 / Vista / XP / 2000
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
Fully Remote Independent Operation YES
Event Notification By FTP & E-Mail
IR Remote Control YES (IR receiver built-in)
Mobile Surveillance YES (Including iPhone & BlackBerry)
Picture Zoom 2X digital zoom
PTZ Control YES
Alarm I/O 4 inputs, 1 output
Key Lock (Password Protection) YES
User Level Administrator & Operator
Video Loss Detection YES
Camera Title Supports up to 6 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) DC 19V
Power Consumption (±10%) ＜42 W
Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)** 343(W) x 59(H) x 223(D)
System Recovery System auto recovery after power failure
Optional Peripherals Keyboard Controller
DVC 4ch
Stand-alone 4 kanalni DVR, quadplex (istovremeno snimanje, reprodukcija, arhiviranje i pregled preko mreže)
H.264 kompresija, rezolucija prikaza 720x576
Brzina snimanja 100fps@720x576, brzina podesiva po kanalu
1 SATA priključak za HDD, maksimalni kapacitet 2TB
Dodatni eSATA priključak za proširenje diskovnog prostora
BNC/VGA izlaz za glavni monitor (VGA rezolucija 1024x768 / 1280x1024)
Snimanje: ručno, po detekciji pokreta, po alarmnom ulazu, vremenskom rasporedu, predalarmno snimanje podesivo po vremenu
Snimanje snimljenog materijala na USB MS i preko mreže, alarmna notifikacija na e-mail
Daljinski upravljač u kompletu
RS-485 za PTZ upravljanje
Komunikacija putem PC mreže, mrežni softver u kompletu, LAN, DHCP, ADSL, DDNS, WEB server
Mobile clinet za iPhone i Android mobilne uređaje
Mogućnost podešavanja preko Internet Explorera
Dual stream podesiv po kanalu za brži prenos videa preko računarske mreže
VideoSec 8ch
8-kanalni stand-alone pentapleks network DVR; H.264/G.711 kompresija; 8 video ulaza; 1 BNC kompozitni video izlaza; VGA izlaz; HDMI izlaz (720p); 8 audio ulaza/1 izlaz; USB 2.0 x2 - za lokalni backup i miš; RS485; 8 alarmnih ulaza i 3 relejna izlaza; snimanje sa do 200FPS u CIF ili 48FPS u D1; rezolucija prikaza 720×576 ili do
1280x1024 (VGA i HDMI); dual stream podrška; sa IC daljinskim upravljaèem; mesto za 1 SATA HDD-a do 2TB; network port i software za daljinski nadzor i konfigurisanje; CMS software; web pristup; software za Win Mobile, Symbian, IPhone i Android mobilne; dimenzije 375(L) × 285(W) ×50(H)mm; masa 2,35kg; napajanje110-240VAc
preko priloženog adaptera 12VDc 6A
AV Tech 8ch
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Input 8 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Loop Output 8 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Output (BNC) Main Monitor For stable display
Call Monitor For sequence display
Video Output (VGA) Built-in VGA interface for LCD monitor
Audio Input / Output 4 audio inputs, 2 audio output (Mono)
Maximum Recording Rate Frame 704×480 pixels with 60 IPS <NTSC> / 704×576 pixels with 50 IPS <PAL>
Field 704x240 pixels with 120 IPS <NTSC> / 704×288 pixels with 100 IPS <PAL>
CIF 352×240 pixels with 240 IPS <NTSC> / 352×288 pixels with 200 IPS <PAL>
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
Hard Disk Storage Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB)
Quick Search Time / Motion / Alarm search mode
SATA Interface Built-in
Recording Mode Manual / Timer / Motion / Alarm / Remote
Multiplex Operation Live display / record / playback / backup / network operations
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Pre-alarm Recording YES
Backup Device DVD Writer (optional) / USB 2.0 flash drive / Network
Web Transmitting Compression Format H.264
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Licensed software “Video Viewer” / Internet Explorer, Mozilla Firefox
or Google Chrome web browser / QuickTime player
Web Interface (10 users access simultaneously)
*Operating System: Windows 7 / Vista / XP / 2000
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
Fully Remote Independent Operation YES
Event Notification By FTP & E-Mail
R.E.T.R. (Remote Event Trigger Recording) YES
IR Remote Control YES (IR receiver built-in)
Mobile Surveillance YES (Including iPhone, BlackBerry, WinCE, J2ME & Android)
Picture Zoom 2X digital zoom
PTZ Control YES
Alarm I/O 8 inputs, 1 output
Key Lock (Password Protection) YES
User Level Administrator & Operator
Video Loss Detection YES
Camera Title Supports up to 6 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) DC 19V
Power Consumption (±10%) < 64 W
Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)** 432(W) × 90(H) × 326(D)
System Recovery System auto recovery after power failure
Optional Peripherals Keyboard Controller
DVC 8ch
Stand-alone 8 kanalni DVR, quadplex (istovremeno snimanje, reprodukcija, arhiviranje i pregled preko mreže)
H.264 kompresija, rezolucija prikaza 720x576
Brzina snimanja: 100fps@720x276, 200fps@720x288, 200fps@352x288, brzina podesiva po kanalu
1 SATA priključak za HDD, maksimalni kapacitet 2TB
Dodatni eSATA priključak za proširenje diskovnog prostora
BNC/VGA izlaz za glavni monitor (VGA rezolucija 1024x768 / 1280x1024)
Snimanje: ručno, po detekciji pokreta, po alarmnom ulazu, vremenskom rasporedu, predalarmno snimanje podesivo po vremenu
Snimanje snimljenog materijala na USB MS i preko mreže, alarmna notifikacija na e-mail
Daljinski upravljač u kompletu
RS-485 za PTZ upravljanje
Komunikacija putem PC mreže, mrežni softver u kompletu, LAN, DHCP, ADSL, DDNS, WEB server
Mobile clinet za iPhone i Android mobilne uređaje
Mogućnost podešavanja preko Internet Explorera
Dual stream podesiv po kanalu za brži prenos videa preko računarske mreže
VideoSec 16ch
16-kanalni stand-alone pentapleks network DVR; H.264/G.711 kompresija; 16 video ulaza; 1 BNC kompozitni video izlaza; VGA izlaz; HDMI izlaz (720p); 4 audio ulaza/1 izlaz; USB 2.0 x2 - za lokalni backup i miš; RS485; 16 alarmnih ulaza i 3 relejna izlaza; snimanje sa do 400FPS u CIF ili 96FPS u D1; rezolucija prikaza 720×576 ili do
1280x1024 (VGA i HDMI); dual stream podrška; sa IC daljinskim upravljaèem; mesto za 1 SATA HDD do 2TB; network port i software za daljinski nadzor i konfigurisanje; CMS software; web pristup; software za Win Mobile, Symbian, IPhone i Android mobilne; dimenzije 375(L) × 285(W) ×50(H)mm; masa 2,35kg; napajanje110-240VAc
preko priloženog adaptera 12VDc 6A;

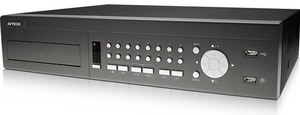

AV Tech 16ch
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Input 16 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Loop Output 16 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Output (BNC) Main Monitor For stable display
Call Monitor For sequence display
Video Output (VGA) Built-in VGA interface for LCD monitor
Audio Input / Output 4 audio inputs, 2 audio output (Mono)
Maximum Recording Rate Frame 704×480 pixels with 120 IPS <NTSC> / 704×576 pixels with 100 IPS <PAL>
Field 704x240 pixels with 240 IPS <NTSC> / 704×288 pixels with 200 IPS <PAL>
CIF 352×240 pixels with 480 IPS <NTSC> / 352×288 pixels with 400 IPS <PAL>
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
Hard Disk Storage Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB)
Quick Search Time / Motion / Alarm search mode
SATA Interface Built-in
Recording Mode Manual / Timer / Motion / Alarm / Remote
Multiplex Operation Live display / record / playback / backup / network operations
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Pre-alarm Recording YES
Backup Device DVD Writer (optional) / USB 2.0 flash drive / Network
Web Transmitting Compression Format H.264
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Licensed software “Video Viewer” / Internet Explorer, Mozilla Firefox
or Google Chrome web browser / QuickTime player
Web Interface (10 users access simultaneously)
*Operating System: Windows 7 / Vista / XP / 2000
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
Fully Remote Independent Operation YES
Event Notification By FTP & E-Mail
R.E.T.R. (Remote Event Trigger Recording) YES
IR Remote Control YES (IR receiver built-in)
Mobile Surveillance YES (Including iPhone, BlackBerry, WinCE, J2ME & Android)
Picture Zoom 2X digital zoom
PTZ Control YES
Alarm I/O 16 inputs, 1 output
Key Lock (Password Protection) YES
User Level Administrator & Operator
Video Loss Detection YES
Camera Title Supports up to 6 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) DC 19V
Power Consumption (±10%) < 64 W
Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)** 432(W) × 90(H) × 326(D)
System Recovery System auto recovery after power failure
Optional Peripherals Keyboard Controller
DVC 16ch
Stand-alone 16 kanalni DVR, quadplex (istovremeno snimanje, reprodukcija, arhiviranje i pregled preko mreže)
H.264 kompresija, rezolucija prikaza 720x576
Brzina snimanja: 100fps@720x276, 200fps@720x288, 400fps@352x288, brzina podesiva po kanalu
2 SATA priključka za HDD (bez DVDRW), maksimalni kapacitet diska 2TB
Dodatni eSATA priključak za proširenje diskovnog prostora
BNC/VGA izlaz za glavni monitor (VGA rezolucija 1024x768 / 1280x1024)
Snimanje: ručno, po detekciji pokreta, po alarmnom ulazu, vremenskom rasporedu, predalarmno snimanje podesivo po vremenu
Snimanje snimljenog materijala na USB MS i preko mreže, opcionalno na DVDRW, alarmna notifikacija na e-mail
Daljinski upravljač u kompletu
RS-485 za PTZ upravljanje
Komunikacija putem PC mreže, mrežni softver u kompletu, LAN, DHCP, ADSL, DDNS, WEB server
Mobile clinet za iPhone i Android mobilne uređaje
Mogućnost podešavanja preko Internet Explorera
Dual stream podesiv po kanalu za brži prenos videa preko računarske mreže
